Three-stage Automatic Bioreactor

Three-stage Automatic Bioreactor

BLBIO-5SJ-50SJ-500SJ 5 liters 50 liters 500 liters grade 3 stainless steel fermenter

BLBIO-10SJ-50SJ-700SJ 10 liters 50 liters 700 liters grade 3 stainless steel fermentation tank

BLBIO-50SJ-500SJ-5000SJ 50 liters 500 liters 5000 liters grade 3 stainless steel fermenter

BLBIO-100SJ-100SJ-1000SJ 100 liters 1000 liters 1000 liters grade 3 stainless steel fermenter

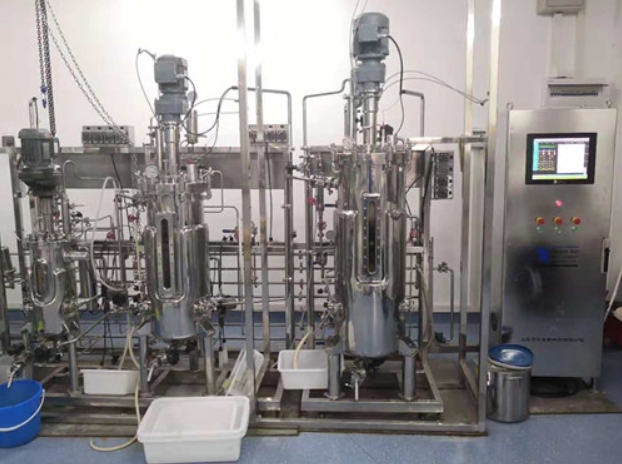

In the multi-stage fermenter system, each tank can be used independently or in combination; Reliable seed transfer line, can be sterilized separately; Floor-mounted/bench-mounted rack optional, BLBIO-A, B, C, D control system optional: separate control cabinet or centralized control; Various fermenters can be combined as required, and are suitable for experimental studies of transition fermentation from laboratory shake flask scale-up to production, as well as for small-scale production

BLBIO-C type control system: German Siemens S7-200 series PLC control system +10" LCD touch screen display operation, on-site direct operation (menu type), full Chinese menu and interface; Sampling and display of tank data, browsing and analysis of system data, reading settings. It can control the stirring speed, the temperature of the medium in the tank, the pH value, and the DO value;

It can set the upper and lower limits of temperature, speed, PH value, DO value, and has the function of over-limit alarm;

It has the functions of over-level alarm and automatic refill, over-level alarm and automatic addition of defoamer;

All alarm accidents can be recorded and consulted;

Speed, temperature, PH value, DO value, etc. can be set to automatic and off state;

Parameters such as medium temperature, stirring speed, Ph, DO and other parameters in the tank can be set and controlled in sections according to the process requirements;

Each parameter has PID adjustment process display, such as set value, real-time value, PID set value, upper and lower limit value, curve display, manual/automatic switching, online setting, etc.;

The historical data and curves of various parameters can be stored for many years, and the real-time curves can be restored as they are when the power is turned on again;

The man-machine interface is friendly, and more than a dozen monitoring screens can be switched;

It has the function of feeding and metering; Regular and quantitative feeding;

The system has a variety of correlation controls: correlation control between velocity and dissolved oxygen, correlation control between feeding and dissolved oxygen, correlation control between feeding and pH value, etc.;

The system has real-time display, data recording and data analysis of the running process

The parameters of each detection and control loop can be manually set and corrected online on the screen, and the temperature, DO, PH sensors can be set and adjusted, and the flow rate of each peristaltic pump can be calibrated. The operation has a password protection function, and the password is divided into operator and administrator-level passwords;

Automatically record the fermenter start-up time, shutdown time, number of power outages during automatic operation, power outage time, call time, etc.;

The software system has self-adaptive and self-diagnostic capabilities;
