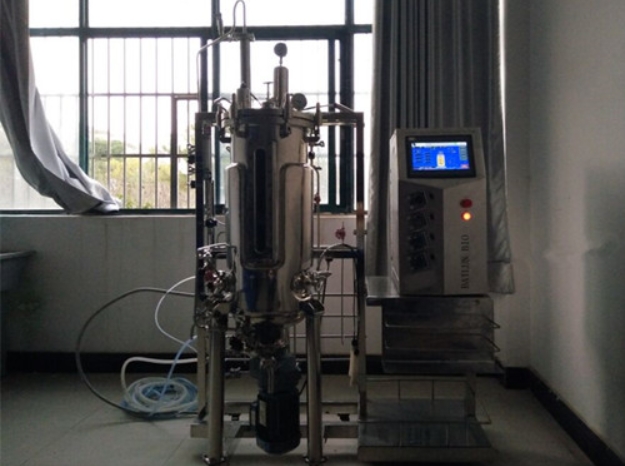

Magnetic Stirring Bioreactor (50L)

Nominal volume: 50 liters magnetic stirring: diameter to height ratio: 1:2; Liquid charging factor: 70% Tank: 316L stainless steel, the field of view on the tank lid is relatively wide, and the operation and cleaning are very convenient; The polishing accuracy of stainless steel is Ra≤0.4, and the part in contact with the material is 316L motor: AC motor, which can operate in harsh environments; Ventilation: The rotameter shows that the flow agitation system of the gas is adjusted according to the process requirements: the magnetic stirring system is suspended by a strong magnetic mechanical force (fully sealed, zero leakage, no pollution, and the dynamic seal is changed to a static seal, which completely solves the problem of bacterial culture and infection in the biological product tank); Stirring form: Straight-blade stirring paddle (two-stage), mechanical compression defoaming paddle (one-stage) fermentation pH control function: intelligent PID control, special PH electrode; Fermentation dissolved oxygen degree control function: intelligent PID control, special DO electrode; Temperature control: electric heating, water cooling, with good heat exchange efficiency; Feeding: Perfect feeding system sterilization: sterilization in situ; BLBIO-A, B, C, D control system optional: German Siemens S7-200 series PLC control system + LCD touch screen display and operation, full Chinese menu and interface; You can use the USB disk for data transmission, sampling and display of tank data, browsing and analysis of system data, and reading settings. Technical parameters: stirring speed: speed: 50~700rpm stepless speed change; Accuracy: ±1rpm; PH control: range: 2~12ph; Control accuracy: ±0.02ph, resolution: 0.01ph; DO control: can be associated with speed; Range: 0~100%, Control accuracy: ±3%; Resolution: 0.1%; Temperature control: Range: cooling water temperature +5~55°C; Accuracy: ±0.1°C; Resolution: 0.1°C; Foam control: electrode detection, peristaltic pump replenishment defoamer, automatic control; Ventilation: manual adjustment, flow meter display; Tank pressure: manual adjustment, pressure gauge display; Range: 0~0.20Map;

Add optional features:

b. Feeding balance weighing W Tank weighing D Automatic control of air flow e Tank pressure detection f Bypass pure oxygen g On-line detection of redox potential h On-line detection and control of methyl (ethyl) alcohol content I On-line detection of tail gas O2 and CO2 content A Automatic sterilization function C. Automatic tank cleaning function U Automatic lifting function of tank cover

Model note: BLBIO-XABC-D

X—total tank volume:

A—Tank Material:-G: Glass/-S: Stainless Steel -C Animal Cell Tank -V Vaccine Tank -M Enzyme Reactor

B—Transmission mode: -C: Magnetic transmission mechanical stirring/-J direct transmission mechanical stirring/-Q air flow stirring, -S solid stirring, -G provides the light source

C --Add optional function -A automatic sterilization -Manual sterilization without wei -Y Glass in-situ manual sterilization -U Automatic lifting of the tank lid

D -- Controller model -A is an industrial control computer + control module -Wuwei B type controller, which is our company's standard controller -C is a 10-inch LCD touch screen + PLC -D is a 15-inch LCD touch screen + Siemens PLC + imported transmitter
