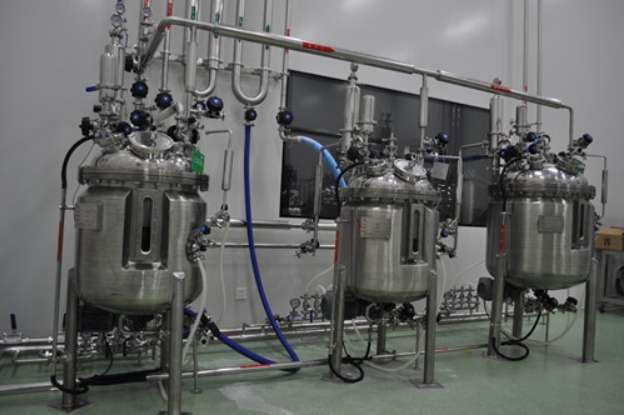

Magnetic Stirring Vaccine Bioreactor (300L)

Nominal volume: 300 liters magnetic stirring: diameter to height ratio: 1:1.5-3; Liquid filling factor: 70% tank body: 316L stainless steel, the field of view on the tank lid is relatively wide, and the operation and cleaning are very convenient; The polishing accuracy of stainless steel is Ra≤0.4, and the part in contact with the material is 316L motor: AC motor, which can operate in harsh environments; Ventilation: The rotameter shows that the flow agitation system of the gas is adjusted according to the process requirements: the magnetic stirring system is coupled under the strong magnetic machinery (fully sealed, zero leakage, no pollution, and the dynamic seal is changed to static seal, which completely solves the problem of bacterial culture and infection in the biological product tank); Stirring form: straight-blade stirring paddle (two-stage) pitch-blade paddle one-stage, mechanically pressed defoaming paddle (one-stage) fermentation pH control function: intelligent PID control, special PH electrode; Fermentation dissolved oxygen degree control function: intelligent PID control, special DO electrode; Temperature control: electric heating, water cooling, with good heat exchange efficiency; Feeding: Perfect feeding system sterilization: sterilization in situ; BLBIO-C type control system optional: German Siemens S7-200 series PLC control system + LCD touch screen display and operation, full Chinese menu and interface; You can use the USB disk for data transmission, sampling and display of tank data, browsing and analysis of system data, and reading settings. Technical parameters: stirring speed: speed: 50~700rpm stepless speed change; Accuracy: ±1rpm; PH control: range: 2~12ph; Control accuracy: ±0.02ph, resolution: 0.01ph; DO control: can be associated with speed; Range: 0~100%, Control accuracy: ±3%; Resolution: 0.1%; Temperature control: Range: cooling water temperature +5~55°C; Accuracy: ±0.1°C; Resolution: 0.1°C; Foam control: electrode detection, peristaltic pump replenishment defoamer, automatic control; Ventilation: manual adjustment, flow meter display; Tank pressure: manual adjustment, pressure gauge display; Range: 0~0.20Map;

Add optional features:

b. Feeding balance weighing W Tank weighing D Automatic control of air flow e Tank pressure detection f Bypass pure oxygen g On-line detection of redox potential h On-line detection and control of methyl (ethyl) alcohol content I On-line detection of tail gas O2 and CO2 content A Automatic sterilization function C. Automatic tank cleaning function U Automatic lifting function of tank cover

Model note: BLBIO-XABC-D

X—total tank volume:

A—Tank Material:-G: Glass/-S: Stainless Steel -C Animal Cell Tank -V Vaccine Tank -M Enzyme Reactor

B—Transmission mode: -C: Magnetic transmission mechanical stirring/-J direct transmission mechanical stirring/-Q air flow stirring, -S solid stirring, -G provides the light source

C --Add optional function -A automatic sterilization -Manual sterilization without wei -Y Glass in-situ manual sterilization -U Automatic lifting of the tank lid

D -- Controller model -A is an industrial control computer + control module -Wuwei B type controller, which is our company's standard controller -C is a 10-inch LCD touch screen + PLC -D is a 15-inch LCD touch screen + Siemens PLC + imported transmitter
