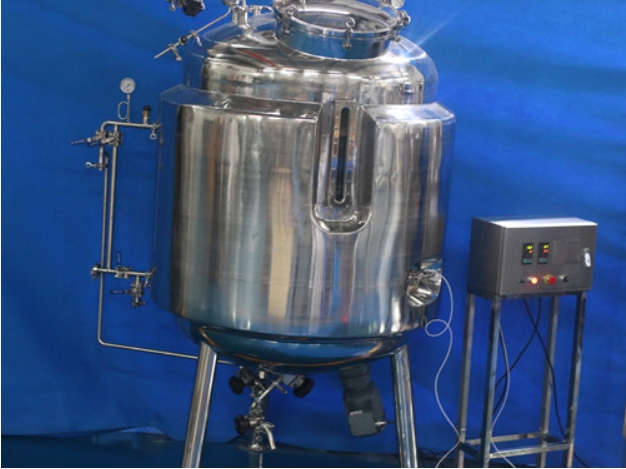

Magnetic Stirring Tank (50L-2000L)

Magnetic stirring: diameter-to-height ratio: 1:1.5; Liquid charging coefficient: 70% Tank: 316L stainless steel, the field of vision on the tank lid is relatively wide, and the operation and cleaning are very convenient; The polishing accuracy of stainless steel is Ra≤0.4, and the part in contact with the material is 316L motor: AC motor, which can operate in harsh environments; Ventilation: The rotameter shows that the flow agitation system of the gas is adjusted according to the process requirements: the magnetic stirring system is coupled under the strong magnetic machinery (fully sealed, zero leakage, no pollution, and the dynamic seal is changed to static seal, which completely solves the problem of bacterial culture and infection in the biological product tank); Temperature control: electric heating, water cooling, with good heat exchange efficiency; Feeding: Perfect feeding system sterilization: sterilization in situ; Technical parameters: stirring speed: speed: 50~200rpm stepless speed change; Accuracy: ±1rpm; Temperature control: Range: cooling water temperature +5~55°C; Accuracy: ±0.1°C; Resolution: 0.1°C; Tank pressure: manual adjustment, pressure gauge display; Range: 0~0.20Map;

Add optional features:

b. Feeding balance weighing W Tank weighing D Automatic control of air flow e Tank pressure detection f Bypass pure oxygen g On-line detection of redox potential h On-line detection and control of methyl (ethyl) alcohol content I On-line detection of tail gas O2 and CO2 content A Automatic sterilization function C. Automatic tank cleaning function U Automatic lifting function of tank cover

Model note: BLBIO-XABC-D

X—total tank volume:

A—Tank Material:-G: Glass/-S: Stainless Steel -C Animal Cell Tank -V Vaccine Tank -M Enzyme Reactor

B—Transmission mode: -C: Magnetic transmission mechanical stirring/-J direct transmission mechanical stirring/-Q air flow stirring, -S solid stirring, -G provides the light source

C --Add optional function -A automatic sterilization -Manual sterilization without wei -Y Glass in-situ manual sterilization -U Automatic lifting of the tank lid

D -- Controller model -A is an industrial control computer + control module -Wuwei B type controller, which is our company's standard controller -C is a 10-inch LCD touch screen + PLC -D is a 15-inch LCD touch screen + Siemens PLC + imported transmitter
