10 L 7-pack 50 L Triple Stainless Steel Bioreactor
Collect

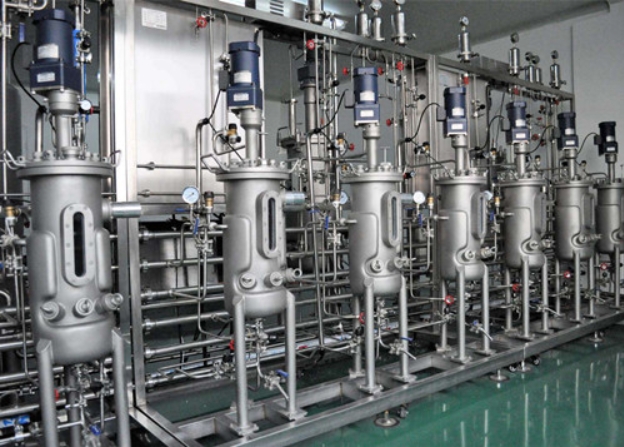

10 liter 7-pack 50-liter triple stainless steel Bioreactor
10L7 stainless steel fermentation tank BLBIO-10SJ-7
15L7 stainless steel fermenter
50L multi-conjoined advanced metabolic flow fermenter
15L50L multi-conjoined advanced metabolic flow fermenter The polycouple is a set of laboratory glass fermentation equipment, which is automatically controlled by sterilization, easy to operate, and powerful, which can meet various purposes of fermentation, such as batch, batch fed-batch, and even the culture of animal cells. The color touch screen displays all measured values and control parameters, which greatly facilitates the user's operation. Each tank is equipped with 4 peristaltic pumps next to the front tank of the control box, which can replenish the fermenter with acid, alkali, defoamer and media. Fermentation parameters such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transferred to the controller or computer. Compact design, all components can be integrated into the fermentation system. It adopts the direct coupling mechanical stirring mode of upper drive or the indirect coupling mechanical stirring mode of lower drive magnetic, which has simple structure and stable operation. BLBIO-8.0 analysis software: Based on the theory of detection and control of biological metabolic flow of cells and molecules and the optimization of microbial fermentation process for many years, it has rich biological fermentation process detection software, with rich sampling. The main functions of this software are as follows: A: Accurately calculate indirect parameters such as OUR, CER, RQ, KLa and other online parameters, and can display multiple curves with different parameters on the same coordinate plane at the same time; B: Accurately display the material balance and changes in the fermenter, which is convenient for users to analyze the correlation of the fermentation process, so as to help users derive appropriate control points and achieve the purpose of one-step scale-up of pilot test; C: It can input the detection data of total sugar, reducing sugar, amino nitrogen, bacterial concentration, fermentation unit and other offline and generate the corresponding curve under the online process parameter curve; D: It mainly has the following functions: Parallel sampling of multiple tanks Direct comparison of multi-batch data Unified display and comprehensive analysis of multiple data Convenient customization capability (can be programmed by yourself) Real-time sampling of online data Real-time processing and display of online data Manual parameter input Indirect parameters are automatically calculated Historical data query and display Custom parameters Graphics, report printing This equipment is a relatively high-end product developed by our company, which is suitable for large-scale pharmaceutical factories and research institutes to optimize the process Nominal volume: 10 liters, 2 sets, 50 liters 6 sets, with seed transfer workstation, independent controller for each tank, centralized computer for analysis and control Diameter-to-height ratio: 1:2-3; Liquid charging factor: 70% Tank: 316L stainless steel tank Mixing method: Shaft drive mechanical mixing (John Crane mechanical seal) Ventilation: The rotameter shows that the flow rate of the gas is adjusted according to the process requirements PH control function: intelligent PID control, METTLER PH electrode; DO function: METTLER DO electrode can be controlled in association with feeding and rotational speed. Temperature control: intelligent PID control, electric heating, water cooling Feeding: perfect feeding system (acid, alkali, bubble enemy, culture agent), can be programmed to control the feeding; Sterilization: Sterilization in situ; Vaccination: Alcohol flame inoculation; Technical Parameters: Stirring speed: special speed regulating motor, wide range, low noise, high temperature resistance, speed: 50~1000rpm Accuracy: ±1rpm; PH control: intelligent PID control, peristaltic pump automatically replenishes acid/alkali; Range: 2~12ph; Control accuracy: ±0.02ph, DO control: intelligent PID control, which can be associated with the feeding speed; Range: 0~100%, Control accuracy: ±3%; Temperature control: intelligent PID control; Electric heating, water cooling; Range: cooling water temperature +5~60°C; Accuracy: ±0.1°C; Foam control: electrode detection, peristaltic pump replenishment defoamer, automatic control; Ventilation: manual adjustment, flow meter display; Tank pressure: manual adjustment, pressure gauge display; Range: 0~0.20Map; BLBIO-B type, C type control system optional: Siemens S7-200 series PLC control system + vinylon LCD touch screen Full Chinese menu and interface; You can use the USB disk for data transmission, sampling and display of tank data, browsing and analysis of system data, and reading settings.
