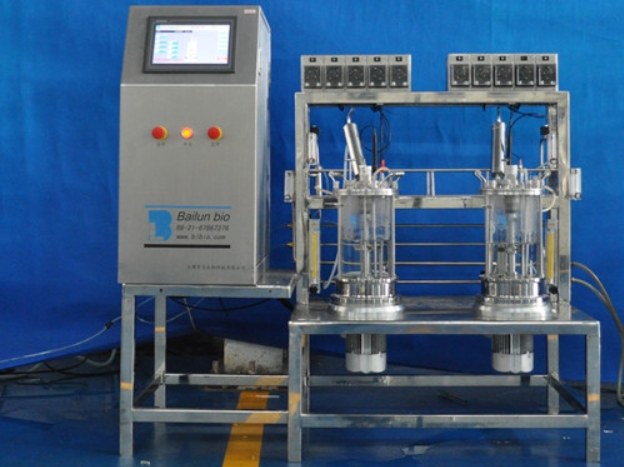

5 L 2-Gang Sterilized Magnetic Stirred Glass Fermenter BLBIO-5GC-2-A
7 liter 2-gang sterilized mechanical stirred glass fermentation tank BLBIO-7GJ-2-A
Parameter
Description
Total volume
5L,10L,15L,20L,30L,40L etc.
Working volume
40%~70%
Tank
Glass wall with stainless steel lid and bottom, heating from jacket bottom.
Stirring system
Mechanical drive(top) or Magnetic drive(top/bottom), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable.
Mix speed: 50~1000rpm/50-400rpm
Sterilization
Sterilization in situ (SIP), manual
Gas control
Control by rotor meter, air flow 1-2vvm.
Feeding
Automatically feeding by peristaltic pump
Anti-foam control
Automatically add antifoamer by peristaltic pump
Temperature control
Auto-control by program, electric heating range water source add 5℃ to 70℃
PH control
PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland.
DO control
0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen.
Sampling
Manual sampling
Control parameters
10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions
Optional configuration
Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weighting system, Live cell sensor(Biomass), Printing, Siemens touch screen, etc.
BLBIO-XGCA / XGJA-2 is a set of laboratory glass fermentation equipment, sterilization automatic control, easy to operate, powerful, fermentation can meet a variety of purposes, such as batch, fed-batch, or animal cell culture. Color touch screen display of all measured values and control parameters, which greatly facilitates the user’s actions. Per pot in front of the tank next to the control box installed four peristaltic pump, to the fermentor can be added acids, bases, defoamers, and the culture medium. Fermentation of various parameters such as, pH, DO, temperature and speed can be monitored by the controller, all the data and control parameters can be passed to the controller or computer. Compact structure, the various components can be integrated on the fermentation system. The upper driver using direct coupling mechanical stirring or lower driving indirectly coupled magnetic mechanical stirring manner, simple structure, stable operation.
