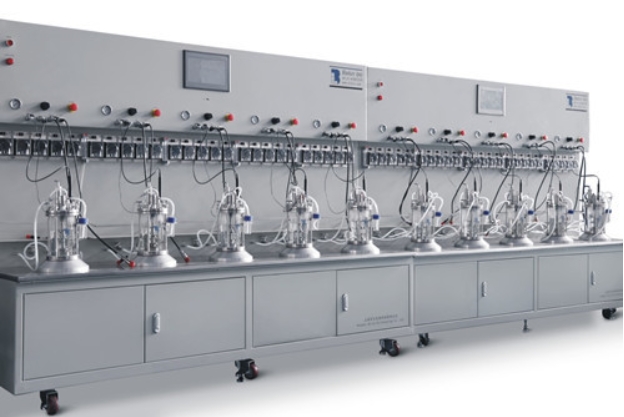

Decadial Glass Bioreactor

Full volume: 1 liter (0.6/1/2/3/5/7/10 liters optional)

Number of cans: 2-10 optional

Sterilization method: off-site sterilization or in-situ sterilization

Stirring method: magnetic stirring or mechanical stirring

Diameter-to-height ratio: 1:2; Liquid Charging Coefficient: 70%

Tank body: The bottom of the tank lid is 316L stainless steel, which is very convenient for operation and cleaning; Stainless steel inner polishing accuracy Ra≤0.4;The contact part with the material is 316L ventilation: the rotameter shows that the flow rate of the gas is adjusted according to the process requirements, and the stirring form is as follows: Straight-blade stirring paddle (second stage), mechanical compression defoaming paddle (first stage) fermentation pH control function: intelligent PID control, special PH electrode; Fermentation dissolved oxygen degree control function: intelligent PID control, special DO electrode; Temperature control: electric heating, water cooling, with good heat exchange efficiency; Feeding: perfect feeding system BLBIO-type A, B, C, D type control system optional: German Siemens S7-200 series PLC control system + LCD touch screen display and operation, full Chinese menu and interface; You can use the USB disk for data transmission, sampling and display of tank data, browsing and analysis of system data, and reading settings. Technical parameters: stirring speed: speed: 50~1000rpm stepless speed change; Accuracy: ±1rpm; PH control: range: 2~12ph; Control accuracy: ±0.02ph, resolution: 0.01ph; DO control: can be associated with speed; Range: 0~100%, Control accuracy: ±3%; Resolution: 0.1%; Temperature control: Range: cooling water temperature +5~55°C; Accuracy: ±0.1°C; Resolution: 0.1°C; Foam control: electrode detection, peristaltic pump replenishment defoamer, automatic control; Ventilation: manual adjustment, flow meter display; Tank pressure: manual adjustment, pressure gauge display; Range: 0~0.20Map;

Add optional features:

b. Feeding balance weighing W Tank weighing D Automatic control of air flow e Tank pressure detection f Bypass pure oxygen g On-line detection of redox potential h On-line detection and control of methyl (ethyl) alcohol content I On-line detection of tail gas O2 and CO2 content A Automatic sterilization function C. Automatic tank cleaning function U Automatic lifting function of tank cover
