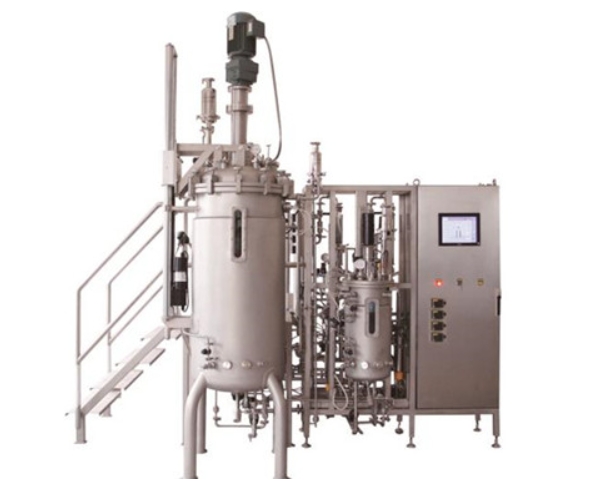

Automatic Fermentation Tank (10L-2000L)

Nominal volume: 5L, 10L, 20L, 30L, 50L, 100L....... 100000L ；

Diameter-to-height ratio: 1:2~3; Liquid Charging Coefficient: 70%

Sterilization method: automatic program sterilization

Ventilation: automatic ventilation, thermal mass flow meter automatically controls the air flow

Pressure: Pressure control range: 0-0.3Mpa, the pressure regulating valve automatically adjusts the outlet pressure, and the digital remote transmission display.

Fermentation pH control function: intelligent PID control, METTLER PH electrode; Fermentation dissolved oxygen control function: intelligent PID control, METTLER DO electrode; Temperature control: intelligent PID control, electric heating, water cooling, circulating pump circulating temperature control, Feeding and defoaming: perfect feeding system (acid, alkali, bubble enemy, culture agent) BLBIO-UIP automatic lifting system of tank cover: lifting the tank cover through the electric system, easy to clean and maintain BLBIO-SIP tank automatic sterilization system: a patented product researched and developed on the basis of European fermentation tanks, one-button operation, reducing the labor intensity of the operator BLBIO-CIP tank automatic cleaning system (optional): cleaning the tank through the automatic system, reducing labor intensity BLBIO-S or D type control system:Siemens S7-200 series PLC control system, the system uses more than 10 inches of tablet computer to control pH, DO, tank pressure, temperature, speed, air flow, defoaming, feeding and other 8 direct parameters and tank pipeline automatic sterilization, tank automatic cleaning, tank lid automatic lifting three processes and can calculate indirect parameters. pH and DO electrodes can be easily calibrated by software; Initial control state of set parameters BLBIO-8.0 analysis software is based on the theory of detection and control of cell and molecular biometabolic flux and has been rich in microbial fermentation process optimization research for many years. The functions of this software are mainly as follows: A: Accurately calculate indirect parameters such as OUR, CER, RQ, KLa and so on, and can display a number of curves with different parameters on the same coordinate plane at the same time; B: Accurately display the material balance and changes in the fermenter, which is convenient for users to analyze the correlation of the fermentation process, so as to help users derive appropriate control points and achieve the purpose of one-step scale-up of pilot test; C: It can input the detection data of total sugar, reducing sugar, amino nitrogen, bacterial concentration, fermentation unit and other offline and generate the corresponding curve under the online process parameter curve; D: It mainly has the following functions: multi-tank parallel sampling, multi-batch number data direct comparison, unified display and comprehensive analysis of multiple data, convenient self-customization ability (you can program it yourself), online data real-time sampling, online data real-time processing and displayManual parameter input, indirect parameter automatic calculation, data query and display of custom parameter graphics, report printing This equipment is a relatively high-end product developed by our company, suitable for large-scale pharmaceutical factories and research institutes to optimize the process

Add optional features:

b. Feeding balance weighing W Tank weighing D Automatic control of air flow e Tank pressure detection f Bypass pure oxygen g On-line detection of redox potential h On-line detection and control of methyl (ethyl) alcohol content I On-line detection of tail gas O2 and CO2 content A Automatic sterilization function C. Automatic tank cleaning function U Automatic lifting function of tank cover
