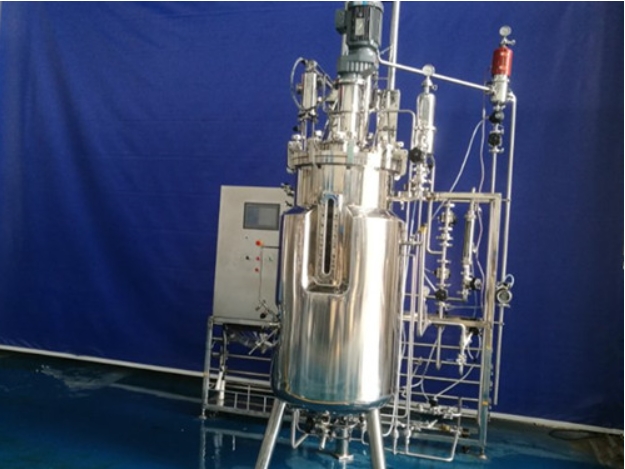

Fully Automatic Bioreactor

50L-5000L stainless steel tank, the contact material part is 316L stainless steel, the tank body has no dead angle, and the spherical tank bottom head
Stirring method: direct coupling mechanical stirring with upper drive or indirect coupling mechanical stirring with lower drive magnetic, simple structure and stable operation
Sterilization method: BLBIO-SIP automatic program sterilization (leading technology, stable quality, low failure rate, Reduce the operator's labor intensity)
temperature: cooling water temperature +5 °C ~ 80 °C± 0.2 °C tap water or ice water cooling, external circulation heating, avoid local overheating, stable temperature control.
pH: 2.00~12.00±0.05 Two peristaltic pumps two-way switch control
DO: 0~100%±3%
stirring: 50~1000rpm±10% stepless speed regulation, shaft transmission mechanical stirring or magnetic transmission mechanical stirring
feeding: peristaltic pump duty cycle switch control
Defoaming: sensitivity 100~100,000 Ω electrode detection, peristaltic pump duty cycle switch control to add defoamer

Automatic pressure detection system: the tank pressure is automatically detected by the pressure transmitter imported from Switzerland, and the pressure is automatically jogged and released

Automatic Tank Lid Lifting System (30L-500L): The electric system automatically lifts the tank lid to facilitate cleaning and maintenance

BLBIO-B type control system optional: Siemens S7-200 series PLC control system, it is a mature, stable and general-purpose PLC, which can be suitable for various applications of automation, especially in the application of manufacturing process control. With its modularity, easy-to-achieve distributed configuration and easy-to-master characteristics, Siemens PLC control core has become an economical and advanced control system for the implementation of biological reaction process control. The system uses more than 10-inch tablet computer to control 7 direct parameters such as pH, DO, tank pressure, temperature, speed, defoaming, feeding, etc., and the automatic sterilization process of the tank pipeline can easily calibrate the pH and DO electrodes through software; Set the initial control state of the parameter

Add optional features:

b. Feeding balance weighing W Tank weighing D Automatic control of air flow e Tank pressure detection f Bypass pure oxygen g On-line detection of redox potential h On-line detection and control of methyl (ethyl) alcohol content I On-line detection of tail gas O2 and CO2 content A Automatic sterilization function C. Automatic tank cleaning function U Automatic lifting function of tank cover

Model note: BLBIO-XABC-D

X—total tank volume:

A—Tank Material:-G: Glass/-S: Stainless Steel -C Animal Cell Tank -V Vaccine Tank -M Enzyme Reactor

B—Transmission mode: -C: Magnetic transmission mechanical stirring/-J direct transmission mechanical stirring/-Q air flow stirring, -S solid stirring, -G provides the light source

C --Add optional function -A automatic sterilization -Manual sterilization without wei -Y Glass in-situ manual sterilization -U Automatic lifting of the tank lid

D -- Controller model -A is an industrial control computer + control module -Wuwei B type controller, which is our company's standard controller -C is a 10-inch LCD touch screen + PLC -D is a 15-inch LCD touch screen + Siemens PLC + imported transmitter
