Mechanical Stirring Anaerobic Bioreactor

Nominal volume: 1/2/3/5/7/10,,,, 10000 liters

Diameter to height ratio: 1:2~Liquid filling coefficient: 70%

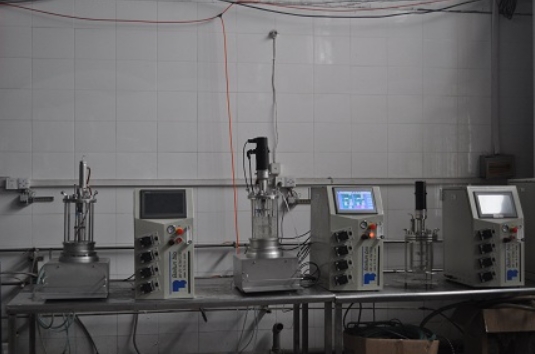

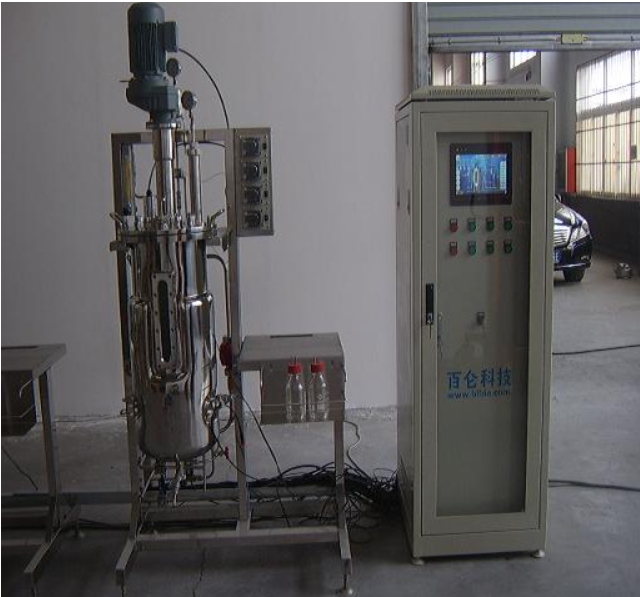

Tank body: Silicone borosilicate glass tanks with high temperature resistance and corrosion resistance up to 7 liters, and 316L stainless steel tanks with 5 liters or more, which comply with fermentation processes.

Mixing system: direct transmission mechanical mixing, AC motor, John Crane mechanical seal, other necessary filling for pressure retention, convenient to use

Ventilation: The rotary flowmeter displays and adjusts the gas flow rate according to process requirements

Sterilization: BLBIO-Anaerobic-XGJ out of place sterilization, BLBIO-Anaerobic-XJ is in situ sterilized

technical parameter

Mixing speed: speed regulation motor speed: 50~1000rpm continuously variable; Accuracy: ± 1rpm;

PH control: intelligent PID control, peristaltic pump automatically replenishes acid/alkali; Range: 2~12ph; Control accuracy: ± 0.02ph, resolution: 0.01ph;

ORP detection: Switzerland Mettler oxidation-reduction potential electrode detection

Temperature control: intelligent PID control, automatic control; Electric heating and water cooling; Scope: Cooling water temperature+5-60 ℃; Accuracy: ± 0.1 ℃;

Foam control: peristaltic pump replenishes defoamer, automatic control;

Ventilation: manual adjustment, flow meter display;

Tank pressure: manual adjustment, pressure gauge display; Range: 0~0.20Map;

BLBIO-A type B-type C-type D-type control system optional: Siemens S7-200 series PLC control system from Germany+7 "touch screen display and operation, capable of data saving, analysis, curve display, data can be saved for many years, and data can be exported through USB drive

Add optional features:

b   Supplementing balance weighing W tank weighing D automatic air flow control E tank pressure detection F bypass pure oxygen g   Online detection of redox potential h    Online detection and control of A (B) alcohol content in tail gas O2 CO2 content online detection A automatic sterilization function C automatic tank cleaning function Automatic lifting function of U can cover

Model annotation: BLBIO XABC-D

X - Total tank volume:

A - Tank material: - G: glass/- S: stainless steel - C animal cell tank - V vaccine tank - M enzyme reactor

B - Transmission mode: - C: Magnetic drive mechanical stirring/- J direct drive mechanical stirring/- Q airflow stirring - S solid stirring - G provides light source

C -- Add optional functions - A Automatic sterilization - No manual sterilization - Y Glass in-situ manual sterilization - U Can lid automatic lifting

D - Controller model - A is an industrial control computer+control module - None is a B-type controller, which is our company's standard controller - C is a 10 inch LCD touch screen+PLC - D is a 15 inch LCD touch screen+Siemens PLC+imported transmitter
