Multi Channel Micro Bioreactor (controllable pH feeding and DO)

Multi channel micro bioreactor (controllable pH feeding and DO)

9 1L bioreactors - Shake bed micro bioreactors     BLBIO-mini-HYJ-9

6 1L bioreactors - Shake bed micro bioreactors     BLBIO-mini-HYJ-6

The BLBIO-mini-HYG-F series micro bioreactors save more than 10 times more time than general cultivation methods, making them the best tool for large-scale bacterial strain/cell line screening and culture condition optimization research.

Main application examples:

• Discovery of secondary metabolites or new enzyme activity in heterogeneous mixed culture products; • High throughput screening research, mutation distribution research, and construction of Escherichia coli or yeast libraries Metabolic flow research and high-throughput screening of highly active mutant strains; • Comparative studies, such as isolation and screening of clinical strains; • Optimization of growth medium for cell lines or high-yield strains; The shaking table micro multi fermentation tank is very suitable for screening bacterial strains and has the following unique functions:

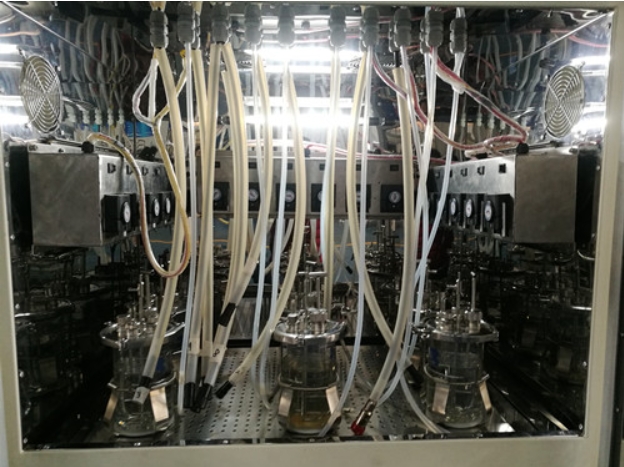

Equipped with 1-6 glass jars with pH electrodes and feeding sockets, the 100ML-2000ML can measure pH data in real-time during the fermentation process, ensuring environmental stability and pure cultivation needs.

The glass jar is equipped with stainless steel baffles, greatly improving the oxygen supply environment in the culture medium.

Equipped with a trace continuous feeding control system, it not only meets the needs of production bacteria for corresponding culture media at different stages of growth, but also has almost no change in the growth environment of microorganisms, ensuring the continuity and stability of pure culture.

DO detection (optional)

The continuous pH curve over time obtained from this device, as well as the feed control (combined with pH control to form cascade feedback control or unrelated control), combined with the analysis of the composition of the culture medium, can provide a preliminary understanding of the physiological and metabolic characteristics of the relevant bacteria, and provide important basis for technical research after bacterial screening and further optimization of the fermentation process.

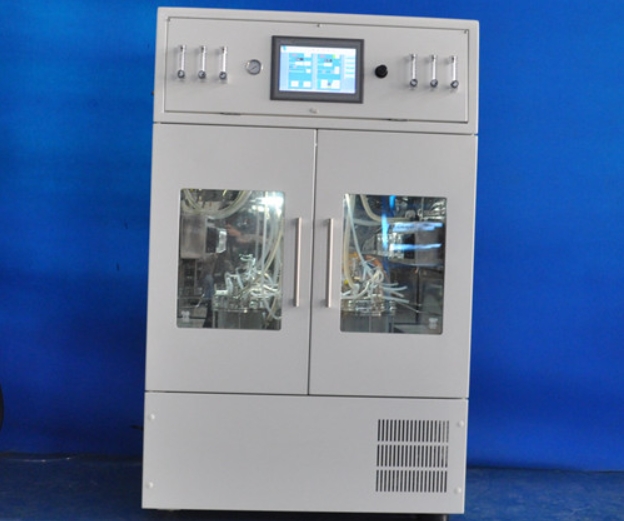

BLBIO-B control system: LCD touch screen display control: pH, temperature, amplitude automatic control, ventilation volume manually adjustable, can be sterilized by ultraviolet radiation,
