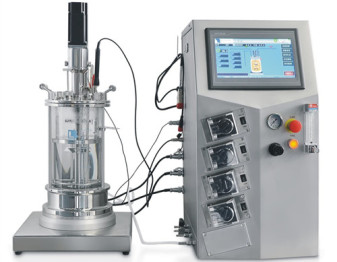

  • Glass Bioreactor and Micro Bioreactor

    党外知识分子和新的社会阶层人士学习贯彻党的十九大精神专题座谈会7日在京召开。

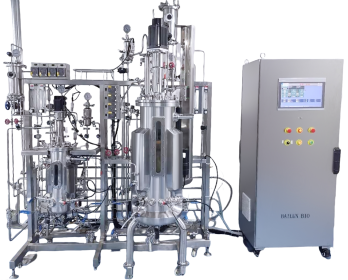

  • Stainless Steel Bioreactor (standard type)

    中国特色社会主义进入新时代,为广大统一战线成员施展才能、发挥作用创造了更大舞台、提出了更高要求。

  • Biopharmaceutical Workshop Process Module (GMP)

    信息生产传播与创新方面,中央主要新闻网站表现较好,人民网、新华网、央视网开设的传播专题特色鲜明、主题突出

  • Mammalian Cell Bioreactor

    中央主要新闻网站围绕“十九大”主题开展报道,具有连续性的系列主题推出方式,起到良好的信息导向作用。

  • Multiple Bioreactor (glass)

    菌种通过自然诱变、诱变育种或合成生物学改造,采用高通量筛选获得高性能的细胞株。高通量筛选一般采用高通量微孔板筛选方法和微反应器研究。我们采用了所示的多通道微型平行生物反应器,具有0.1-2.4升体积。由于微反应器的流畅特性较适用于工业生产装置,有较好的效果。(这里的多通道是为了从大量的细胞株中获得少数高性能细胞株)

  • Multi Stage Bioreactor (stainless steel)

    菌体细胞的变异和环境条件变化对细胞代谢的影响是生物过程变化的主要影响,由于我们缺乏实验条件和认识的不全面性,无法解释合成生物学的组学研究和发酵调控的关联性。我们通过反应器的设计操作,把合成生物学、化学工程和生化工程的学科交叉配合,解决HCPS三元系统的数据共享问题,解决人工智能与生物过程相联系,形成人与人工智能的互相作用,提高解决生物过程问题的能力。其中包括不同环境的细胞动力学研究,工业生产中遇到的各种问题解决,如工业生产原材料、装备能力与工艺关系,连续和半连续发酵,不同批次的数据共享等等。通过组学研究与发酵数据孤岛的反向推理研究对工业化产生影响。

  • Magnetic Stirring Bioreactor

    磁力搅拌发酵罐是一种利用磁力来驱动搅拌器进行混合的发酵容器。磁力搅拌发酵罐在实验室和小规模生产中具有一定的优势,尤其适用于需要精确控制搅拌条件和避免污染的发酵过程。

  • Airlift Stirred Bioreactor

    气升式搅拌发酵罐是一种利用气体通入罐底来产生气泡并实现搅拌的发酵设备。这种类型的发酵罐通常用于小型或中型生产规模,以及实验室规模的发酵过程。

  • Solid Bioreactor

    使用于制药、饮料、酶制剂、生物农药等行业的固体发酵系统,具有投资省,无菌性能好,操作环境省,维修简单不易污染环境等优点,5L-50KL体积不等的固体发酵设备。

产品中心
More
  • Biomedical equipment

    Biomedical equipment

  • Accessories and Supporting Equipment

    WAVE及一次性生物反应器

  • Enzyme Reactor

    党外知识分子和新的社会阶层人士学习贯彻党的十九大精神专题座谈会7日在京召开。

  • Spray Dryer

    中国特色社会主义进入新时代,为广大统一战线成员施展才能、发挥作用创造了更大舞台、提出了更高要求。

  • Biological Shaker

    信息生产传播与创新方面,中央主要新闻网站表现较好,人民网、新华网、央视网开设的传播专题特色鲜明、主题突出

  • Tubular Centrifuge

    中央主要新闻网站围绕“十九大”主题开展报道,具有连续性的系列主题推出方式,起到良好的信息导向作用。

新闻资讯/NEWS

Home >> News >>Industry dynamics >> Detailed sorting of 8 methods and 8 types of institutions for bacterial strain preservation!
Details

Detailed sorting of 8 methods and 8 types of institutions for bacterial strain preservation!

Principle: Based on the physiological and biochemical characteristics of the bacterial strain, conditions are artificially created to keep the metabolic activity of the bacterial body in a dormant state.


Condition: Select excellent purebred, preferably dormant bodies; Create the most favorable environmental conditions for dormancy, such as reducing the nutrient content of the culture medium, low temperature, drying, oxygen isolation, and adding protective agents.




1、 Methods of bacterial strain preservation

  • Oblique preservation method


  • Puncture preservation method


  • Solid Qu Preservation Method


  • Sand tube drying preservation method


  • Vacuum freeze-drying preservation method


  • Liquid nitrogen preservation method


  • Suspension preservation method


  • Low temperature preservation method



1. Oblique preservation method


Principle: Low temperature


Method: Store the cultivated slanted bacterial strains in a refrigerator at 4-5 ℃, and regularly transplant them onto a new slanted culture medium for further preservation. The general storage period is 3-6 months.


Attention: The temperature of the refrigerator; Evaporation of moisture in the culture medium (using rubber stoppers instead of cotton stoppers).


Advantages: Simple and suitable for short-term preservation of bacterial strains in the laboratory.


Disadvantages: Multiple passages within a short period of time can easily cause bacterial variation and degradation, increasing the likelihood of infection.


Applicable strains: short-term preservation of bacteria, actinomycetes, yeast, filamentous fungi, etc.

2. Puncture preservation method


Principle: Low temperature, oxygen deficiency.


Storage period: 4-5 ℃, refrigerator storage period 6-12 months.


Applicable bacterial species: various aerobic bacteria.


The function of liquid paraffin is to prevent dehydration of the culture medium and isolate oxygen.


Liquid paraffin preservation method: (adding sterilized liquid paraffin to slanted bacterial strains) is suitable for bacterial strains that cannot use paraffin as a carbon source, such as nitrogen fixing bacteria, mycobacteria, Salmonella, mucor, rhizopus, etc.


3. Solid Qu Preservation Method


Applicable strain: Spore producing fungi.


This method uses natural agricultural products such as bran, rice, millet, or wheat grains as spore producing culture media to produce a large number of dormant cells (spores) for preservation.


Attention: Control appropriate moisture content.


Shelf life: 1-3 years.


4. Sand tube drying preservation method


Principle: Low temperature and low nutrition.


Shelf life: 4-5 ℃ Refrigeration shelf life 1-2 years.


Applicable strains: Spore producing filamentous fungi and actinomycetes, as well as spore producing bacteria.


The screened, sterilized, and dried sand is used as the storage medium.


Silicone, magnetic beads, or porous glass beads can be used, but there are not many microorganisms suitable for these carriers, the storage period is short, and they are not as practical as sandy soil.


5. Vacuum freeze-drying preservation method


Principle: Quickly freeze cells at low temperatures to maintain their structural integrity, and then sublime water under vacuum (one of the most effective methods).


Steps:


Handling of ampoules: sterilization;


Protector: Its function is to maintain the vital state of bacterial cells and minimize the freezing damage caused by freeze-drying on microorganisms. Skimmed milk or serum is often used.


Preparation of bacterial suspension: Mix with protective agent and place in an ampoule bottle;


Freeze drying (using low-temperature alcohol or dry ice below -15 ℃ to freeze quickly, and vacuum pump to dry at low temperatures).






Shelf life: Melt seal the ampoule at a low temperature of 4-5 ℃ and store for 5-10 years.


Factors that affect the preservation effect: bacterial species, bacterial age, and water content in the sample.


Applicable strain: Suitable for various microorganisms.


Features: Long shelf life, small variation, wide applicability, ideal preservation method.


6. Liquid nitrogen preservation method


Principle: Low temperature.


Suspension medium: 10% glycerol or 5% dimethyl sulfoxide.


Mechanism: Glycerol or dimethyl sulfoxide can enter cells and protect them by reducing strong dehydration.


Glycerol is generally sterilized by high-pressure steam, while dimethyl sulfoxide is best sterilized by filtration.


Applicable strain: Suitable for the preservation of all microorganisms, animal and plant cells.


Shelf life: Store in liquid nitrogen (-196 ℃) for 5-10 years.


Features: The longest preservation period, but the high preservation cost, is only used to preserve strains with high economic value, easy variation, or other methods that cannot be preserved for a long time.


7. Suspension preservation method


Principle: Oligotrophic preservation, suspending bacterial strains in nutrient free solutions.


Applicable strains: filamentous fungi, yeast like fungi, and intestinal bacteria.


Shelf life: Store at 10 ℃ or room temperature (18-20 ℃) for more than 1 year.


8. Low temperature preservation method


Method: Add 12ml of bacterial solution to a well sealed spiral tube, seal it, and store it directly in a low-temperature refrigerator.


Shelf life: -20 ℃ Shelf life of about 1 year.






2、 Precautions for bacterial strain preservation






1. The state of the strain before preservation




Dormant bodies such as spores or spores;


Cultivation time: too short, easy to die; Excessive length leads to decreased production performance;


Culture temperature: Generally, the most suitable temperature for growth is used to cultivate the bacterial strain until the spores mature for better preservation.




2. Substrate used for bacterial strain preservation




The culture medium used for inclined preservation should have a lower proportion of carbon sources and a poorer nutritional content;


The preservation of sand and soil pipes requires thorough washing of sand and soil to prevent excessive organic matter from affecting bacterial metabolism or producing toxic substances after sterilization;


The protective agents used in freeze-drying contain many substances that have been decomposed or denatured by heating, such as reducing sugars and skim milk. Excessive heating can easily form toxic substances.




3. Damage to cellular structure during operation




When freeze-drying, the slow freezing speed can easily lead to the formation of large ice crystals inside the cell, causing damage to the cell structure;


The degree of vacuum drying affects cell structure, and the addition of protective agents is to reduce the damage to cell structure caused by freeze-drying.




3、 Bacterial strain preservation institution




Common Microbial Strain Conservation and Management Center (CCGMC)


Agricultural Microbial Strain Conservation and Management Center (ACCC)


Industrial Microbial Strain Conservation and Management Center (CICC)


Medical Microbial Strain Collection and Management Center (CMCC)


China Antibiotic Strain Conservation and Management Center (CACC)


Veterinary Microbial Strain Conservation and Management Center (CVCC)


Forestry Microbial Strain Conservation and Management Center (CFCC)


China Center for the Collection and Management of Typical Cultures (CCTCC)
